| ELECTRICAL RATINGS |
| 3 Amp: 3A at 120VAC or 28VDC resistive |
| 6 Amp: 6A at 120 VAC or 28VDC; 6A at 240VAC general purpose; 1/4 hp at 120VAC |
12 & 15 Amp: 12A at 120VAC or 28VDC; 12A at 240VAC general purpose;
7A at 277VAC general purpose; 1/4 hp at 120VAC;
15A at 120VAC resistive |
Pilot duty: 40A in-rush, 4A steady state at 125VAC 10A in-rush,
1A steady state at 240VAC |
| N.O. only, Single Pole: |
| 10A at 12VDC Tungsten; 15A at 120VAC Tungsten |
| 1/2 hp at 120VAC; 5.4A at 277 VAC Ballast |
| |
| GENERAL DATA |
| Contact resistance: 50m Ohms Max. |
| Operate time: 8ms Max.(at nominal coltage) |
| Operate bounce time: 3ms Max. |
| Release time:5ms Max. |
| Max. Switching Voltage: 277VAC & 125VDC |
| Min. Permissible Load (reference value): |
| 3 Amp: 5VDC at 1mA |
| 6, 12 &15 Amp: 5VDC at 100mA |
| Insulation Rating: Class B & Class F |
| Insulation resistance: More than 100M Ohms at DC 500V |
Dielectric strength: 750VAC (50/60 Hz), between open contact;
1500VAC (50/60 Hz), between coil & contact |

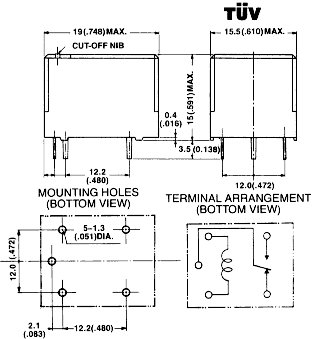

| Vibration: 1.5mm double amplitude, 10 to 50Hz |
| Shock: 100m/sec^2 (approx. 10 G's) |
| Operation frequency: Mechanical: 18,000 operations/hour |
| Electrical: 1,800 operations/hour (under rated load) |
| Service Life: Mechanical: 10 million operations |
| Electrical: 100,000 operations min. at rated resistive load |
| Temperature range: -20ºC to 85ºC, -20ºC to 105ºC |
| Temperature range: -40ºC to 85ºC, -40ºC to 105ºC |
| Temperature rise: Less than 35 degrees |
| Humidity: 45% - 85% RH |
| Approximate weight: 12g |
