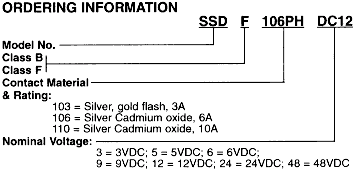

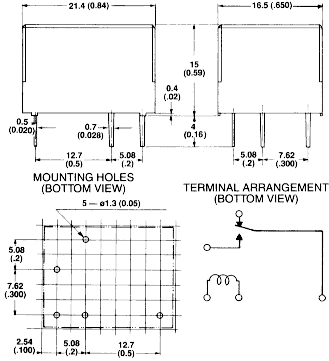

| SPECIFICATIONS |
|---|
| CONTACT DATA |
| Arrangement: 1Form C (SPDT), 1 Form A (SPST-NO), 1 Form B (SPST-NC) |
| Material & Rating: Silver, gold flash: 3A at 24 VDC or 120V AC, 1.5A at 240V AC, resistive |
| Silver Cadmium oxide: 6A at 24VDC or 120VDC, 3A at 240V AC, resistive |
Silver Cadmium Oxide: 10A at 24 VDC or 120VAC, 5A at 240VAC,
resistive 6A, 300VAC and 1/8hp. 120/240VAC |
| Max. operating Voltage: 250VAC & 125VDC |
| Min. pemissible load (reference value): Silver contact: 5VDC, 1mA |
| Other contact: 5VDC, 100mA |
| Service Life: Mechanical: 20 Million operations |
| Electrical: 100,000 operations min. at rated resistive load |
| (See coil data chart) |
| Voltages: From 3V to 48V |
| Power (at 20ºC): Nominal: 0.45 watt |
|
| General Data |
| Contact resistance: 50m Ohms Max. |
| Operate time: Approx. 6ms (at nominal coltage) |
| Opaerate bounce time: Approx. 2ms |
| Release time: Approx. 2ms |
| Insulation resistance: More than 100M Ohms at DC 500V |
Dielectric strength: 750V AC (50/60 Hz), between open contact; 3000V AC (50/60 Hz),
between coil & contact |
| Vibration: 1.5mm double amplitude, 10 to 50Hz |
| Shock: 100m/sec^2 (approx. 10 G's) |
| Operation frequency: Mechanical: 18,000 operations/hour |
| Electrical: 1,800 operations/hour (under rated load) |
| Temperature range: Class B: -45ºC to 85ºC ClassF: -45ºC to 85ºC |
| Temperature rise: Less than 35 degrees |
| Humidity: 45% - 85% RH |
| Approximate weight: 10g |
| Note: The data shown above are of initial value |
| 4000V AC DIELECTRIC STRENGTH BETWEEN |
| COIL & CONTACT AVAILABLE |
